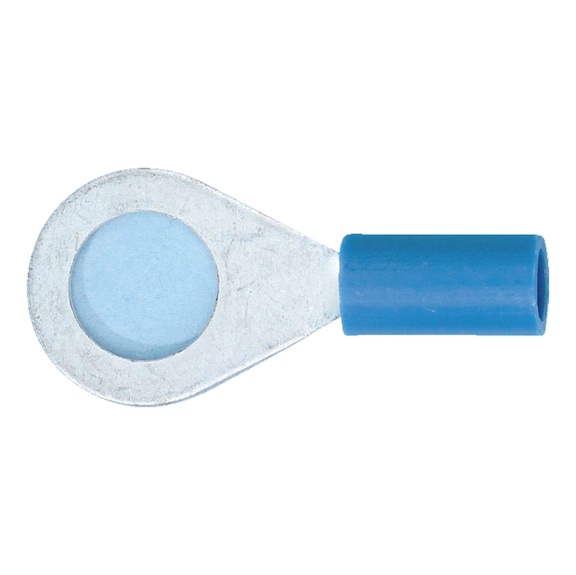

Crimp Cable Lug Ring Connector | PVC Insulated | Tin Plated Copper | M6 Flange Hole | @Pack of 25 | by Wurth
Crimp cable lug ring connectors with PVC insulation and tin plated copper surfaces ensure electrical safety and corrosion resistance. Designed for wire cross sections from 1.5 to 2.5 mm², these connectors are perfect for industrial and automotive electrical installations, providing reliable connections in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Ring Connector | PVC Insulated | Tin Plated Copper | M6 Flange Hole | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 5589102
Alternatively Known As: Crimp ring terminal, cable lug connector, insulated ring terminal, electrical crimp connector
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Flange hole: M6
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 5mm x 50mm x 20mm
- Weight: 0.05 kg
Key Features
- PVC insulated for electrical safety
- Tin plated copper surface for corrosion resistance
- Suitable for wire cross sections from 1.5 to 2.5 mm²
- Flange hole size M6 for secure fastening
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections
- Industrial and automotive electrical installations
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Tin plating enhances corrosion resistance, extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Crimp Cable Lug Ring Connector PVC-Insulated 25 PCS is available for immediate purchase, ideal for electrical wiring and maintenance applications.
