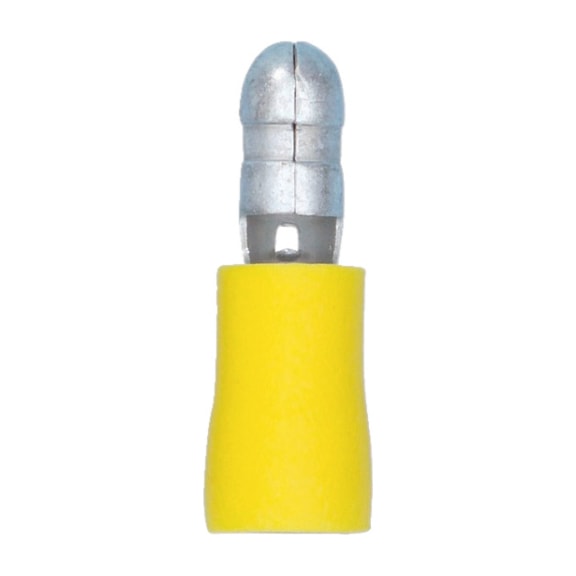

Crimp Cable Lug Round Connector | PVC Insulated | 600V AC Rated | Copper with Tin Plating | @Pack of 25 | by Wurth
Crimp cable lug round connector with PVC insulation and rated for 600V AC, perfect for electrical wiring connections. Made from durable copper with tin plating, it ensures corrosion resistance and is suitable for wire cross sections from 4 to 6 mm². Ideal for industrial and automotive applications, this connector is designed for reliable performance in electrical panel installations and general maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Round Connector | PVC Insulated | 600V AC Rated | Copper with Tin Plating | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 558961
Alternatively Known As: Crimp cable lug, round cable connector, PVC insulated cable terminal, electrical cable lug, wire end connector
Technical Specifications
- Wire cross section: 4-6 mm²
- Colour: Yellow
- Diameter: 5 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 30mm x 40mm x 10mm
- Weight: 0.02 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Suitable for wire cross sections from 4 to 6 mm²
- Rated for a maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections
- Industrial and automotive cable terminations
- Electrical panel installations
- General electrical maintenance and repair
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper and tin plating reduce corrosion and extend product life, minimizing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Crimp Cable Lug Round Connector PVC Insulated RDPLG Yellow D5mm 4-6mm² 25 PCS is available for immediate purchase, ideal for electrical wiring and industrial applications.
