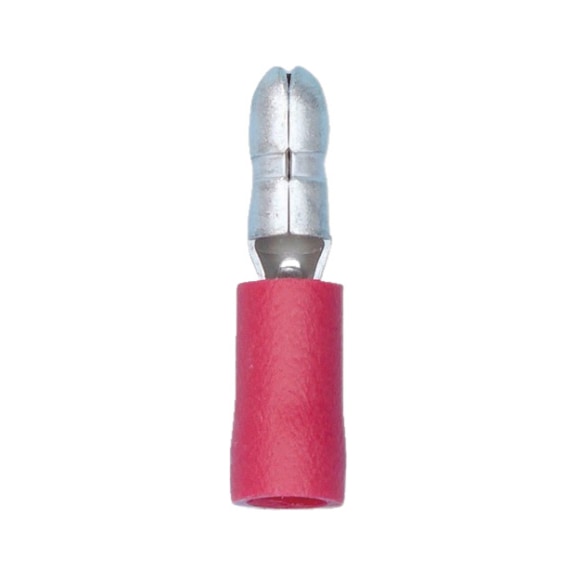

Crimp Cable Lug Round Connector | PVC Insulated | Copper with Tin Plating | 600V AC | by Wurth
Crimp cable lug round connector designed for electrical safety, featuring PVC insulation and durable copper with tin plating. Ideal for wire cross sections from 0.5 to 1 mm², it supports a maximum nominal voltage of 600V AC and operates within a temperature range of -10 to 75 °C. Perfect for automotive, industrial, and general-purpose cable terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Cable Lug Round Connector | PVC Insulated | Copper with Tin Plating | 600V AC | by Wurth
Brand: Wurth
SKU: 5589461
Alternatively Known As: Crimp cable lug, round cable connector, PVC insulated cable terminal, red cable lug, electrical wire connector
Technical Specifications
- Min./max. wire cross section: 0.5-1 mm²
- Colour: Red
- Diameter: 4 mm
- Max. nominal voltage: 600 V AC
- Temperature range: -10 to 75 °C
- Material: Copper
- Surface finish: Tin plated
- Insulating material: PVC
- Halogen-free: No
- Silicone-free: No
- Dimensions (H x L x W): 4mm x 25mm x 10mm
- Weight: 0.01 kg
Key Features
- PVC insulated for electrical safety
- Copper material with tin plating for corrosion resistance
- Suitable for wire cross sections from 0.5 to 1 mm²
- Maximum nominal voltage of 600 V AC
- Temperature range from -10 to 75 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections
- Automotive electrical systems
- Industrial electrical installations
- General purpose cable termination
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable copper and tin plating reduce corrosion and extend product life, minimizing waste.
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Crimp Cable Lug Round Connector PVC Insulated RDPLG RED D4MM 0.5-1.0SMM 25 PCS is available for immediate purchase, ideal for electrical wiring and cable termination applications.
