Crimp & Insul Set 4P 35 mm² | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
The Crimp & Insul Set 4P 35 mm² is designed for high voltage applications, supporting 660V to 3300V and rated for 300A to 425A. Ideal for mining and hazardous environments, it features quick release and stainless steel construction for durability and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

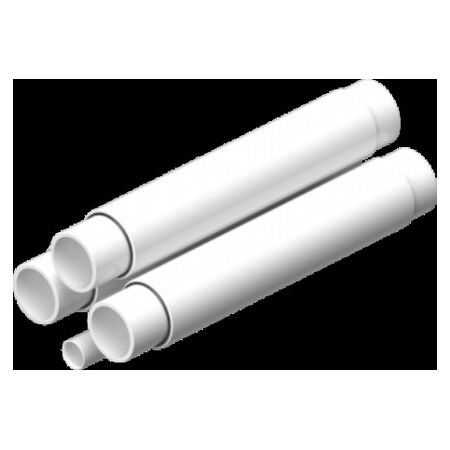

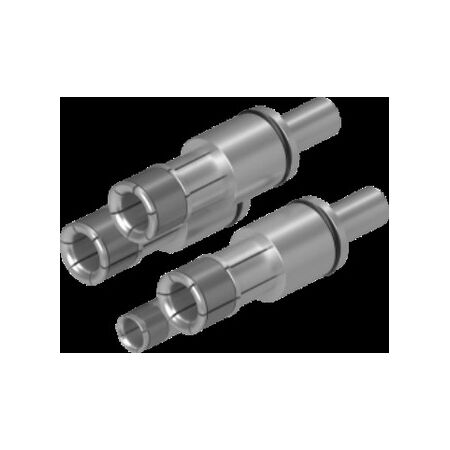

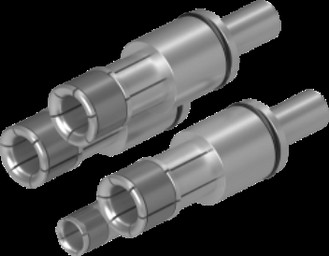

Product Name/Title: PL 12 / 25 Crimp & Insul Set 4P 35 mm^2
Brand: Ausproof
SKU: RS1962
Alternatively Known As: PL Range Crimp & Insul Set, Ex-certified Industrial Plug, Flameproof Plug and Receptacle, Mining Electrical Connector
Technical Specifications
- Voltage: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC HV Withstand (Phase): 8.6kV for one minute
- AC HV Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Weight: Plug 9.0 kg, Receptacle 10.7 kg
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 9 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Professional installation by qualified electricians trained in hazardous area equipment is required to ensure safety and compliance.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof repairable design minimizes waste by allowing on-site repairs
Warranty Information
Warranty details available upon request from Ausproof, typically covering manufacturing defects.
Available Now
The Ausproof PL 12 / 25 Crimp & Insul Set 4P 35 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications.
