Crimp & Insul Set 4P 70 mm² | 660V to 3300V | IP55 Rated | Quick Release by Ausproof

BRAND: Ausproof

SKU: RS1964

$253.00 List price: $314.20

+ −

30 Days Return Delivery Options

The Crimp & Insul Set 4P 70 mm² is designed for high voltage applications, supporting a voltage range of 660V to 3300V and featuring IP55 ingress protection. Ideal for mining and hazardous environments, it offers quick release mechanisms and durable stainless steel construction for reliable performance.

Description

Product Name/Title: PL 12 / 25 Crimp & Insul Set 4P 70 mm^2

Brand: Ausproof

SKU: RS1964

Alternatively Known As: Ex-certified plug and receptacle set, Flameproof electrical connector, Mining plug and socket, Hazardous area electrical connector

Technical Specifications

Voltage Range: 660V to 3300V
Current Ratings: 300A and 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC High Voltage Withstand (Phase): 8.6kV for one minute
AC High Voltage Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: Receptacle 10.7 kg, Plug 9.0 kg
Dimensions (H x L x W): 250mm x 300mm x 250mm
Weight: 10.7 kg

Key Features

Quick Release mechanism for ease of use

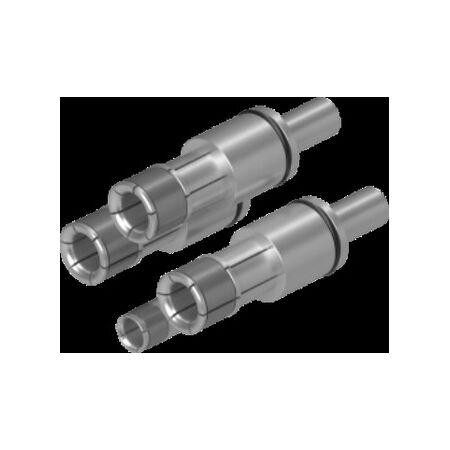

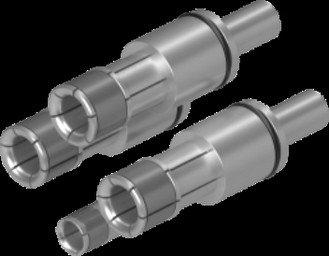

Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout the product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover included
Stainless steel hanging plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations to ensure compliance and safety.

Applications

Mining and tunnelling operations
Commercial applications in hazardous Group 1 environments
Industrial low voltage electrical connections requiring flameproof equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Complies with IEC 60079-0 and IEC 60079-1 standards

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof design enhances safety, reducing risk of environmental hazards
Easy on-site repair reduces waste and downtime

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL 12 / 25 Crimp & Insul Set 4P 70 mm² is available now for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
