Crimp & Insul Set 6P 70 mm² | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
The Crimp & Insul Set 6P 70 mm² is designed for high voltage applications, featuring a voltage range of 660V to 3300V and IP55 ingress protection. Ideal for mining and commercial installations, it offers quick release mechanisms and durable stainless steel construction for enhanced safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

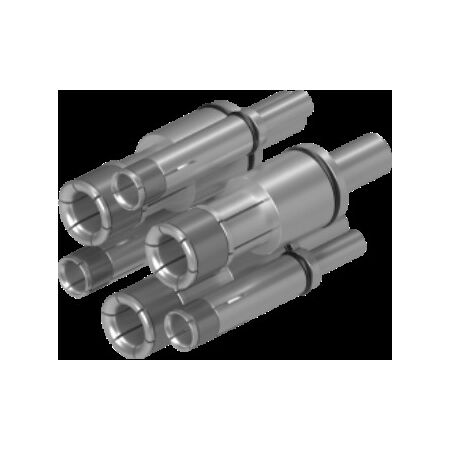

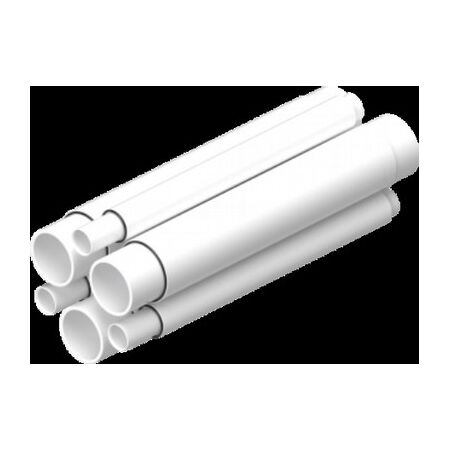

Product Name/Title: PL 12 / 25 Crimp & Insul Set 6P 70 mm^2
Brand: Ausproof
SKU: RS1946
Alternatively Known As: Ex-certified plug and receptacle set, Flameproof electrical connectors, Mining electrical connectors, Stainless steel industrial plugs
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 10.7 kg
Key Features
- Quick Release mechanism for easy disconnection
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone protection cover
- Stainless steel hanging plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with hazardous area electrical equipment and compliant with AS/NZS 3000 Wiring Rules.
Applications
- Mining and tunnelling operations
- Commercial electrical installations
- Group 1 hazardous environments requiring flameproof equipment
Standards & Compliance
- Complies with AS/NZS 1299 for flameproof enclosures and electrical equipment in hazardous areas
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Flameproof design enhances safety, reducing risk of environmental hazards
- Easy on-site repair reduces waste and downtime
Warranty Information
Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.
Available Now
The Ausproof PL 12 / 25 Crimp & Insul Set 6P 70 mm² is available for immediate purchase. Ideal for mining, tunnelling, and commercial hazardous environment applications.
