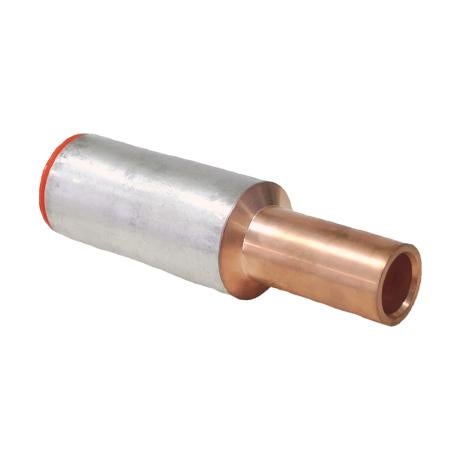

Crimp Link Bimetal Reducing 10mm² Aluminium to 6mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | 110 MPa Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 10mm² Aluminium to 6mm² Copper is designed for seamless electrical connections between aluminium and copper conductors. With a 99.6% pure aluminium sleeve and a 99.9% pure copper palm, it ensures high conductivity and durability. Ideal for industrial and commercial wiring installations, this connector features a tensile strength of 110 MPa and complies with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 10mm² Aluminium to 6mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | 110 MPa Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA10-6
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- For flexible and stranded copper conductors and winding conductors
- Aluminium sleeve: 99.6% pure aluminium
- Copper palm: 99.9% pure copper
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: fully annealed including joint
- Joining method: friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Aluminium sleeve made of 99.6% pure aluminium
- Copper palm made of 99.9% pure copper
- Tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including joint
- Joining method: friction welding
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Flexible and stranded copper conductors
- Industrial and commercial electrical wiring installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Reduces electrical resistance and energy loss by providing efficient conductor transition
- Durable materials extend product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 10mm² Aluminium to 6mm² Copper is available for immediate purchase. Ideal for electrical wiring requiring aluminium to copper conductor transitions.
