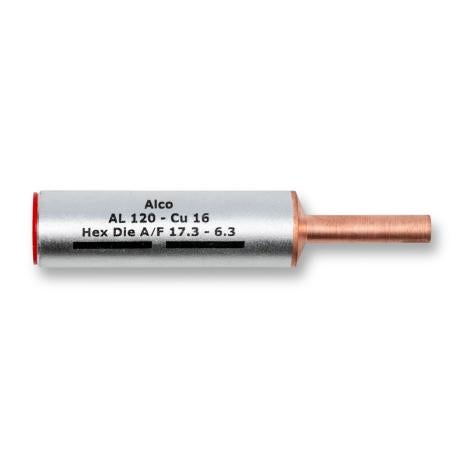

Crimp Link Bimetal Reducing 120mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 120mm² Aluminium to 16mm² Copper is designed for efficient electrical connections between aluminium and copper conductors. With a 99.6% aluminium sleeve and 99.9% copper palm, it ensures high tensile strength and durability. Ideal for industrial and commercial wiring, this connector provides reliable performance in power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 120mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA120-16
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Sizes: 120mm² Aluminium to 16mm² Copper
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor sizes greater than 10mm²
Environmental Benefits
- Reduces electrical resistance and energy loss by providing efficient conductor transition
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 120mm² Aluminium to 16mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
