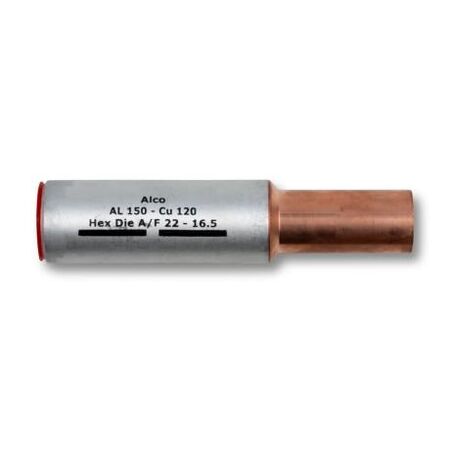

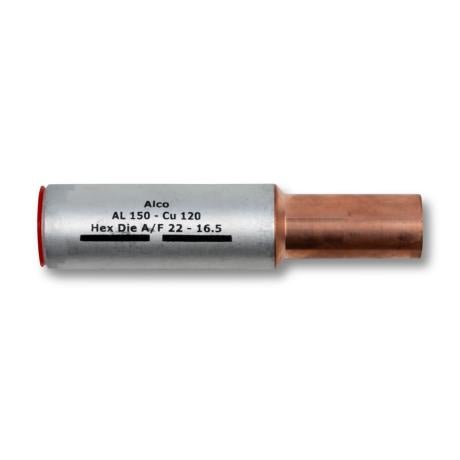

Crimp Link Bimetal Reducing 150mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 150mm² Aluminium to 120mm² Copper is designed for seamless electrical connections between aluminium and copper conductors. With a 99.6% pure aluminium sleeve and a 99.9% pure copper palm, it ensures high tensile strength and durability. Ideal for power distribution and industrial installations, this connector is built for reliable performance and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 150mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA150-120
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Power distribution and industrial electrical installations
- Flexible and stranded copper conductors and winding conductors
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wattmaster for specific warranty terms.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 150mm² Aluminium to 120mm² Copper is available for immediate purchase, ideal for electrical and industrial applications requiring reliable conductor transitions.
