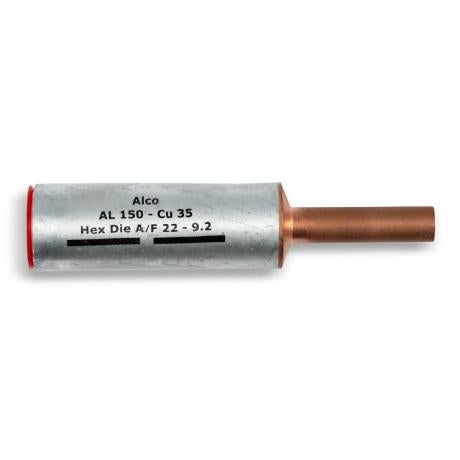

Crimp Link Bimetal Reducing 150mm² Aluminium to 35mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster

BRAND: Wattmaster
SKU: ALCLKCA150-35
$49.90 List price: $60.40
+ −
30 Days Return Delivery Options
The Crimp Link Bimetal Reducing 150mm² Aluminium to 35mm² Copper is designed for secure electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for flexible and stranded copper conductors, this connector ensures high conductivity and durability, making it perfect for industrial and commercial electrical installations.

Product Name/Title: Crimp Link Bimetal Reducing 150mm² Aluminium to 35mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster

Brand: Wattmaster

SKU: ALCLKCA150-35

Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bi-metallic Connector

Technical Specifications
  • For flexible and stranded copper conductors and winding conductors
  • Aluminium sleeve: 99.6% pure aluminium
  • Copper palm: 99.9% pure copper
  • Tensile strength: 110 MPa
  • Ductile rating: 28%
  • Final metal state: fully annealed including joint
  • Joining method: friction welding
  • Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
  • Dimensions (H x L x W): 15mm x 150mm x 60mm
  • Weight: 0.15 kg
Key Features
  • Aluminium sleeve made from 99.6% pure aluminium
  • Copper palm made from 99.9% pure copper
  • Tensile strength of 110 MPa
  • Ductile rating of 28%
  • Fully annealed final metal state including the joint
  • Joining method: friction welding
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
  • Electrical connections for flexible and stranded copper conductors
  • Used in power distribution and electrical wiring systems
  • Suitable for industrial and commercial electrical installations
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
  • Use of high purity metals ensures efficient conductivity reducing energy loss
  • Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information

Warranty details available upon request from the manufacturer.

Available Now

The Wattmaster Crimp Link Bimetal Reducing 150mm² Aluminium to 35mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
