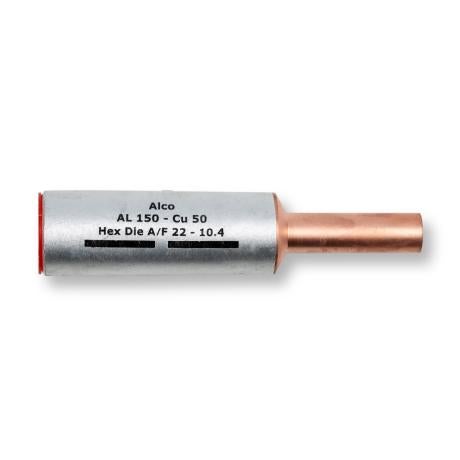

Crimp Link Bimetal Reducing 150mm² Aluminium to 50mm² Copper | 99.6% Aluminium Purity | 99.9% Copper Purity | by Wattmaster
The Crimp Link Bimetal Reducing 150mm² Aluminium to 50mm² Copper is designed for seamless electrical connections between aluminium and copper conductors. With a 99.6% aluminium purity and 99.9% copper purity, it ensures high performance and durability. Ideal for industrial and commercial wiring, this connector features a high tensile strength of 110 MPa and is compliant with AS/NZS standards, making it perfect for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 150mm² Aluminium to 50mm² Copper | 99.6% Aluminium Purity | 99.9% Copper Purity | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA150-50
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.15 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method: friction welding
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Reduces electrical resistance and energy loss in connections
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 150mm² Aluminium to 50mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
