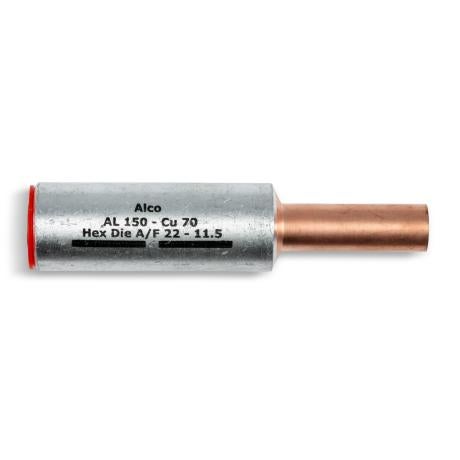

Crimp Link Bimetal Reducing 150mm² Aluminium to 70mm² Copper | 110 MPa Tensile Strength | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 150mm² Aluminium to 70mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for power distribution and industrial applications, ensuring secure and compliant connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 150mm² Aluminium to 70mm² Copper | 110 MPa Tensile Strength | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA150-70
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Crimp Connector, Bi-metallic Reducing Lug
Technical Specifications
- Material: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Size Reduction: From 150mm² Aluminium to 70mm² Copper
- Dimensions (H x L x W): 10mm x 150mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in power distribution and electrical wiring systems requiring bimetallic connections
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Reduces electrical resistance and energy loss in connections, improving energy efficiency
- Durable materials extend product lifespan, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 150mm² Aluminium to 70mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
