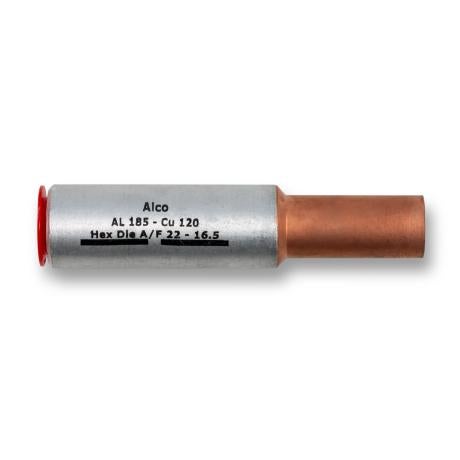

Crimp Link Bimetal Reducing 185mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 185mm² Aluminium to 120mm² Copper is designed for efficient electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for industrial and commercial wiring, this connector ensures reliable transitions between aluminium and copper conductors, with a high tensile strength of 110 MPa and a ductile rating of 28%. Perfect for power distribution applications, it complies with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 185mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA185-120
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bi-metallic Connector
Technical Specifications
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Dimensions (H x L x W): 10mm x 185mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician or electrical technician to ensure proper crimping and secure connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Industrial and commercial electrical wiring requiring bimetallic reducing links
- Use in power distribution and electrical installations requiring aluminium to copper conductor transitions
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer or supplier.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 185mm² Aluminium to 120mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
