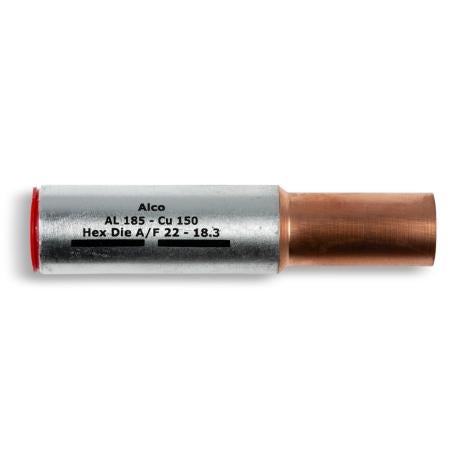

Crimp Link Bimetal Reducing 185mm² Aluminium to 150mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster
The Crimp Link Bimetal Reducing 185mm² Aluminium to 150mm² Copper is designed for efficient electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for power distribution and industrial applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 185mm² Aluminium to 150mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA185-150
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bi-metallic Connector
Technical Specifications
- Aluminium Sleeve: 99.6% pure
- Copper Palm: 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Compliance: AS/NZS 4325.1:1995 (clause 7) for conductors >10mm²
- Dimensions (H x L x W): 10mm x 185mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- Tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method: friction welding
- Complies with AS/NZS 4325.1:1995 (clause 7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in power distribution and electrical wiring systems requiring bimetallic connections
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for electrical connectors
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wattmaster warranty policy.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 185mm² Aluminium to 150mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
