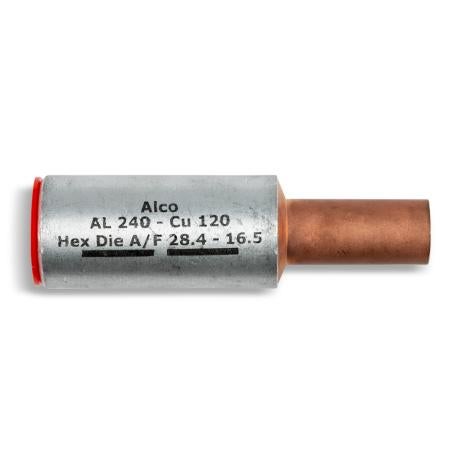

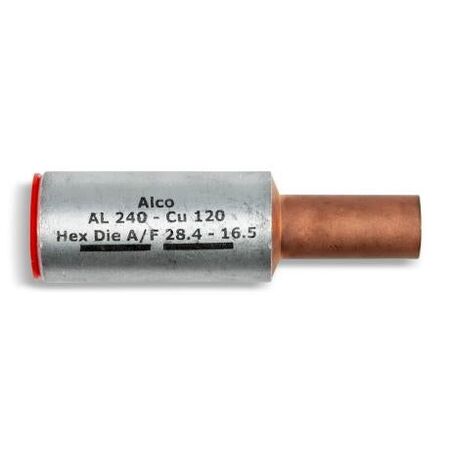

Crimp Link Bimetal Reducing 240mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster

BRAND: Wattmaster
SKU: ALCLKCA240-120
$70.40 List price: $85.20
+ −
30 Days Return Delivery Options
The Crimp Link Bimetal Reducing 240mm² Aluminium to 120mm² Copper is designed for secure electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is ideal for flexible and stranded copper conductors in industrial and commercial applications, ensuring reliable performance and compliance with AS/NZS standards.

Product Name/Title: Crimp Link Bimetal Reducing 240mm² Aluminium to 120mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster

Brand: Wattmaster

SKU: ALCLKCA240-120

Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Crimp Connector, Bi-metallic Reducing Lug

Technical Specifications
  • Suitable for flexible and stranded copper conductors and winding conductors
  • Aluminium sleeve purity: 99.6%
  • Copper palm purity: 99.9%
  • Tensile strength: 110 MPa
  • Ductile rating: 28%
  • Final metal state: Fully annealed including joint
  • Joining method: Friction welding
  • Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
  • Dimensions (H x L x W): 20mm x 120mm x 50mm
  • Weight: 0.15 kg
Key Features
  • Aluminium sleeve made from 99.6% pure aluminium
  • Copper palm made from 99.9% pure copper
  • High tensile strength of 110 MPa
  • Ductile rating of 28%
  • Fully annealed final metal state including the joint
  • Joining method uses friction welding for reliable connection
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
  • Electrical connections for flexible and stranded copper conductors
  • Winding conductors in electrical installations
  • Industrial and commercial electrical wiring requiring bimetallic reducing links
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
  • Use of high purity metals ensures long-lasting connections reducing waste
  • Durable construction minimizes need for frequent replacements
Warranty Information

Warranty coverage as per Wattmaster standard terms and conditions.

Available Now

The Wattmaster Crimp Link Bimetal Reducing 240mm² Aluminium to 120mm² Copper is available for immediate purchase, ideal for electrical wiring and industrial applications requiring reliable bimetallic connections.
