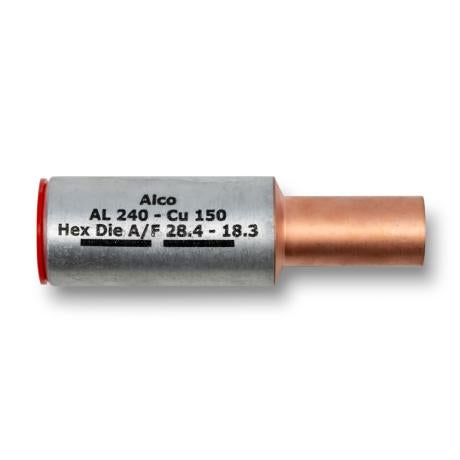

Crimp Link Bimetal Reducing 240mm² Aluminium to 150mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 240mm² Aluminium to 150mm² Copper is designed for reliable electrical connections in power distribution systems. Featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm, this connector ensures high conductivity and durability. Ideal for industrial and commercial applications, it complies with AS/NZS 4325.1:1995 standards, making it a trusted choice for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 240mm² Aluminium to 150mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA240-150
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bi-metallic Connector
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding
- Conductor Size Reduction: 240mm² Aluminium to 150mm² Copper
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 150mm x 50mm
- Weight: 0.3 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in power distribution and electrical wiring systems requiring bimetallic connections
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies; please refer to Wattmaster for specific warranty terms.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 240mm² Aluminium to 150mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
