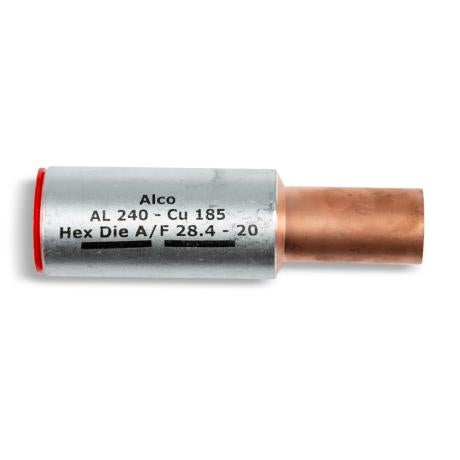

Crimp Link Bimetal Reducing 240mm² Aluminium to 185mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 240mm² Aluminium to 185mm² Copper is designed for secure electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for flexible and stranded copper conductors, this connector ensures high conductivity and durability, making it perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 240mm² Aluminium to 185mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA240-185
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Crimp Connector
Technical Specifications
- For flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: fully annealed including joint
- Joining method: friction welding
- Complies with AS/NZS 4325.1:1995 (clause 7) for conductors >10mm²
- Dimensions (H x L x W): 10mm x 240mm x 50mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- Tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method: friction welding
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in power distribution and electrical wiring requiring bimetallic connections
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (clause 7) for electrical connectors
Environmental Benefits
- Use of high purity metals ensures efficient conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 240mm² Aluminium to 185mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
