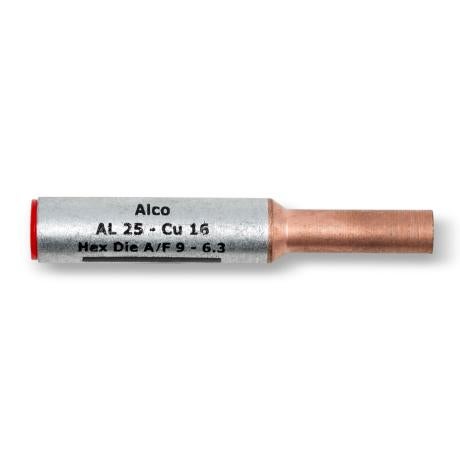

Crimp Link Bimetal Reducing 25mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 25mm² Aluminium to 16mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for flexible and stranded copper conductors in industrial and commercial applications, ensuring efficient conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 10mm x 80mm x 40mm
- Weight: 0.1 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in electrical wiring and winding conductors requiring bimetallic links
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Use of high purity metals ensures efficient conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 25mm² Aluminium to 16mm² Copper is available for immediate purchase, ideal for electrical wiring and industrial applications requiring reliable bimetallic connections.
