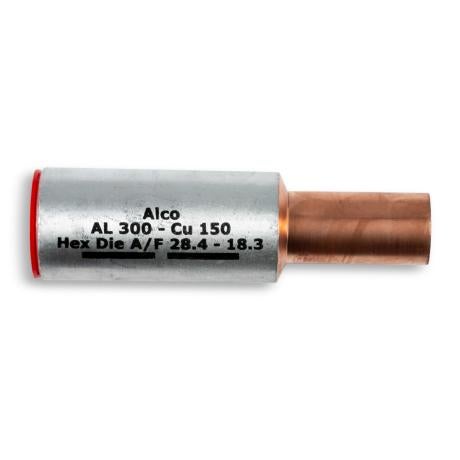

Crimp Link Bimetal Reducing 300mm² Aluminium to 150mm² Copper | 110 MPa Tensile Strength | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 300mm² Aluminium to 150mm² Copper is designed for efficient electrical connections, featuring a 110 MPa tensile strength and a fully annealed joint. Ideal for industrial and commercial wiring, this connector ensures reliable transitions between aluminium and copper conductors, making it perfect for power distribution and electrical panel installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 300mm² Aluminium to 150mm² Copper | 110 MPa Tensile Strength | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA300-150
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Material: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Size: Reduces from 300mm² aluminium to 150mm² copper
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 150mm x 100mm
- Weight: 0.5 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and electrical panel installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 300mm² Aluminium to 150mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
