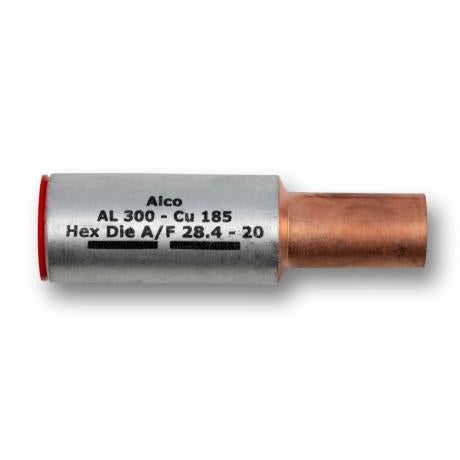

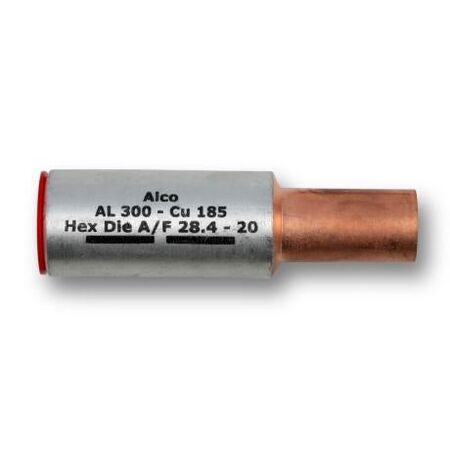

Crimp Link Bimetal Reducing 300mm² Aluminium to 185mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster
The Crimp Link Bimetal Reducing 300mm² Aluminium to 185mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this link is perfect for flexible and stranded copper conductors in industrial and commercial applications, ensuring efficient conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 300mm² Aluminium to 185mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA300-185
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Lug
Technical Specifications
- Aluminium Sleeve: 99.6% pure
- Copper Palm: 99.9% pure
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 185mm x 50mm
- Weight: 0.5 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made of 99.6% pure aluminium
- Copper palm made of 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method: friction welding
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Industrial and commercial electrical wiring requiring bimetallic reducing links
- Use in power distribution and electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 300mm² Aluminium to 185mm² Copper is available for immediate purchase, ideal for electrical and industrial applications requiring reliable conductor connections.
