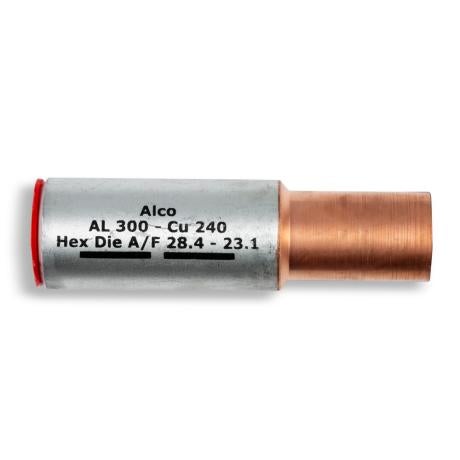

Crimp Link Bimetal Reducing 300mm² Aluminium to 240mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 300mm² Aluminium to 240mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for industrial and commercial wiring applications, ensuring efficient power distribution and reduced energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 300mm² Aluminium to 240mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA300-240
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bimetal Reducing Connector
Technical Specifications
- Aluminium Sleeve: 99.6% pure aluminium
- Copper Palm: 99.9% pure copper
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 240mm x 100mm
- Weight: 0.5 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Suitable for flexible and stranded copper conductors and winding conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Industrial and commercial electrical wiring requiring bimetallic reducing links
- Use in power distribution and electrical installations involving aluminium and copper conductors
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical conductor connectors
Environmental Benefits
- Reduces electrical resistance and energy loss in conductor connections
- Durable materials extend product lifespan, reducing waste
- Facilitates efficient electrical distribution, contributing to energy savings
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 300mm² Aluminium to 240mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
