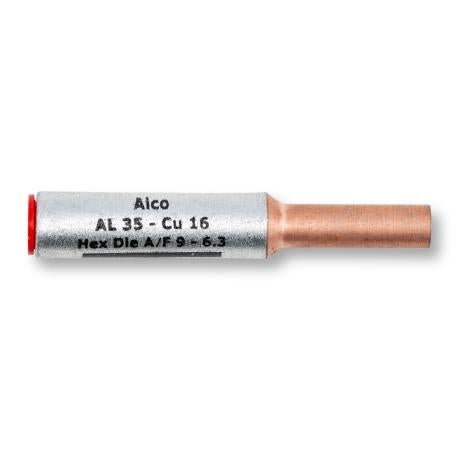

Crimp Link Bimetal Reducing 35mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Reducing 35mm² Aluminium to 16mm² Copper is designed for seamless electrical connections between aluminium and copper conductors. With a high tensile strength of 110 MPa and made from 99.6% pure aluminium and 99.9% pure copper, this connector ensures reliable performance in industrial and commercial wiring applications. Ideal for power distribution and electrical panel installations, it provides efficient conductor transition while reducing energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 35mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA35-16
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Link, Bi-metallic Connector
Technical Specifications
- Compatible with flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
- Dimensions (H x L x W): 10mm x 80mm x 50mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and electrical panel installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Reduces electrical resistance and energy loss by providing efficient conductor transition
- Durable materials extend product lifespan, reducing waste and replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 35mm² Aluminium to 16mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
