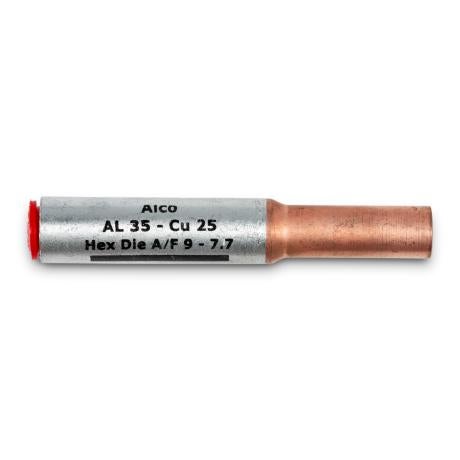

Crimp Link Bimetal Reducing 35mm² Aluminium to 25mm² Copper | High Tensile Strength | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 35mm² Aluminium to 25mm² Copper is designed for efficient electrical connections between aluminium and copper conductors. With a high tensile strength of 110 MPa and made from 99.6% pure aluminium and 99.9% pure copper, this connector ensures reliable performance in industrial and commercial wiring applications. Ideal for power distribution and grounding systems, it complies with AS/NZS 4325.1:1995 standards for safety and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 35mm² Aluminium to 25mm² Copper | High Tensile Strength | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA35-25
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Material: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Sizes: 35mm² Aluminium to 25mm² Copper
- Compliance: AS/NZS 4325.1:1995 (clause 7) for conductors >10mm²
- Dimensions (H x L x W): 15mm x 100mm x 60mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (clause 7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (Electrical & Electronics)
Environmental Benefits
- Enables efficient electrical connections reducing energy loss
- Durable materials reduce the need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 35mm² Aluminium to 25mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
