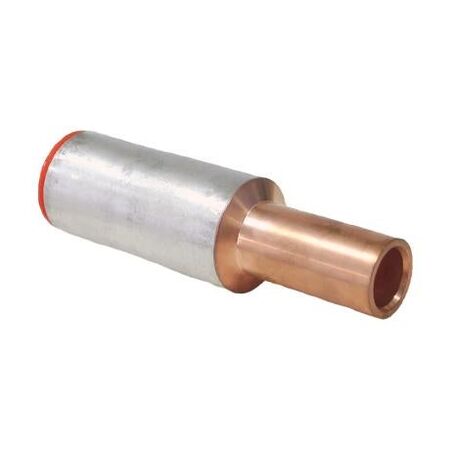

Crimp Link Bimetal Reducing 6mm² Aluminium to 4mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster

BRAND: Wattmaster
SKU: ALCLKCA6-4
$44.00 List price: $53.30
+ −
30 Days Return Delivery Options
The Crimp Link Bimetal Reducing 6mm² Aluminium to 4mm² Copper is designed for efficient electrical connections between aluminium and copper conductors. Featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm, this link ensures high tensile strength and durability. Ideal for both industrial and residential wiring systems, it complies with AS/NZS 4325.1 standards, making it a reliable choice for professional electricians.

Product Name/Title: Crimp Link Bimetal Reducing 6mm² Aluminium to 4mm² Copper | 99.6% Pure Aluminium | 99.9% Pure Copper | by Wattmaster

Brand: Wattmaster

SKU: ALCLKCA6-4

Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Reducing Lug

Technical Specifications
  • Material: Aluminium sleeve (99.6% pure), Copper palm (99.9% pure)
  • Tensile Strength: 110 MPa
  • Ductile Rating: 28%
  • Final Metal State: Fully annealed including joint
  • Joining Method: Friction welding
  • Conductor Sizes: Reduces from 6mm² aluminium to 4mm² copper
  • Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
  • Dimensions (H x L x W): 10mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Aluminium sleeve made from 99.6% pure aluminium
  • Copper palm made from 99.9% pure copper
  • High tensile strength of 110 MPa
  • Ductile rating of 28%
  • Fully annealed final metal state including the joint
  • Joining method uses friction welding for reliable connection
  • Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
  • Electrical connections requiring transition between aluminium and copper conductors
  • Flexible and stranded copper conductors and winding conductors
  • Industrial and residential electrical wiring systems
Standards & Compliance
  • Complies with AS/NZS 4325.1 – Electrical connectors for copper conductors
Environmental Benefits
  • Enables efficient electrical connections reducing energy loss
  • Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The Wattmaster Crimp Link Bimetal Reducing 6mm² Aluminium to 4mm² Copper is available for immediate purchase, ideal for electrical wiring and connection applications requiring aluminium to copper conductor transitions.
