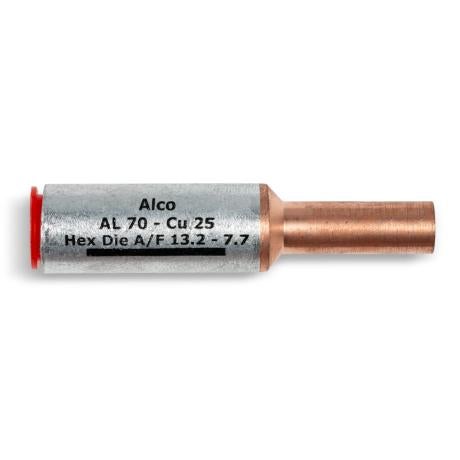

Crimp Link Bimetal Reducing 70mm² Aluminium to 25mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 70mm² Aluminium to 25mm² Copper is designed for seamless electrical connections between aluminium and copper conductors. With a 99.6% pure aluminium sleeve and 99.9% pure copper palm, it ensures high tensile strength and durability. Ideal for industrial and commercial wiring, this connector reduces electrical resistance and energy loss, making it a reliable choice for power distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 70mm² Aluminium to 25mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA70-25
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Bi-metallic Electrical Connector
Technical Specifications
- Compatible with flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 15mm x 100mm x 70mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections requiring transition between aluminium and copper conductors
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Reduces electrical resistance and energy loss in connections
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 70mm² Aluminium to 25mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
