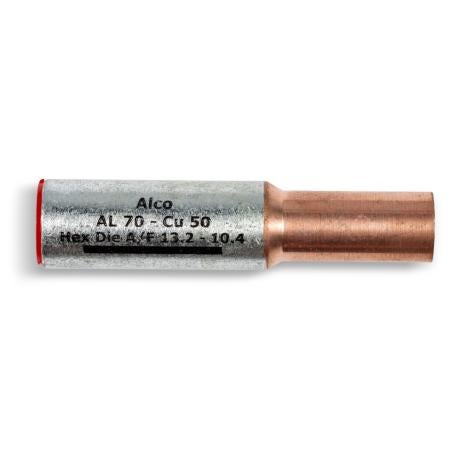

Crimp Link Bimetal Reducing 70mm² Aluminium to 50mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Reducing 70mm² Aluminium to 50mm² Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and compliant with AS/NZS 4325.1:1995 standards, this connector is perfect for industrial and commercial applications requiring durable bimetallic connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Reducing 70mm² Aluminium to 50mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA70-50
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Reducing Link, Electrical Crimp Connector, Bi-metallic Reducing Lug
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 20mm x 100mm x 70mm
- Weight: 0.1 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in electrical wiring and power distribution systems requiring bimetallic connections
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Use of high purity metals ensures long-lasting connections reducing waste from replacements
- Friction welding joining method avoids use of additional materials or chemicals
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Bimetal Reducing 70mm² Aluminium to 50mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications requiring reliable bimetallic connections.
