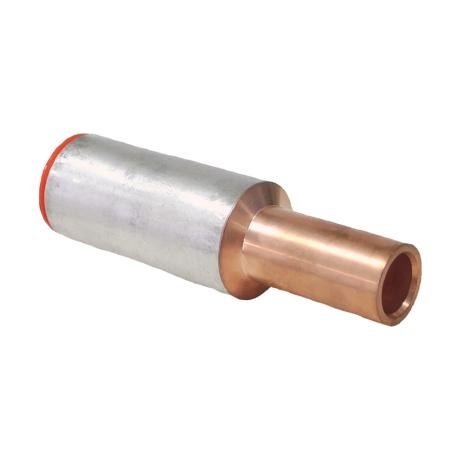

Crimp Link Bimetal Standard 150mm² Aluminium to Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Standard 150mm² Aluminium to Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this crimp link is perfect for flexible and stranded copper conductors in power distribution and industrial applications. Ensure secure connections with friction welding technology, compliant with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Standard 150mm² Aluminium to Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA150-150
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Crimp Link, Electrical Bimetal Link 150mm²
Technical Specifications
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve purity: 99.6%
- Copper palm purity: 99.9%
- Tensile strength: 110 MPa
- Ductile rating: 28%
- Final metal state: Fully annealed including joint
- Joining method: Friction welding
- Dimensions (H x L x W): 10mm x 150mm x 40mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Used in power distribution and electrical wiring systems requiring bimetallic links
- Suitable for industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer or supplier.
Available Now
The Wattmaster Crimp Link Bimetal Standard 150mm² Aluminium to 150mm² Copper is available for immediate purchase, ideal for electrical wiring and power distribution applications.
