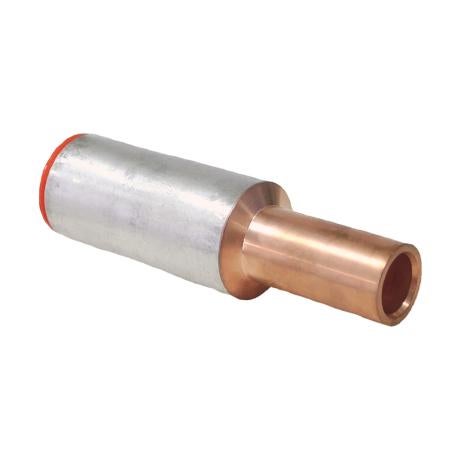

Crimp Link Bimetal Standard 16mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Standard connects 16mm² aluminium to 16mm² copper conductors, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. Ideal for flexible and stranded copper conductors, this link ensures a reliable connection with a high tensile strength of 110 MPa, making it perfect for industrial and commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Standard 16mm² Aluminium to 16mm² Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA16-16
Alternatively Known As: Bimetallic Crimp Link, Aluminium Copper Crimp Connector, Bi-metallic Electrical Link, Crimp Link 16mm² AL-CU
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Conductor Size Compatibility: 16mm² Aluminium to 16mm² Copper
- Dimensions (H x L x W): 10mm x 70mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for flexible and stranded copper conductors and winding conductors
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Winding conductors in electrical equipment
- Industrial and commercial electrical installations requiring bimetallic links
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Use of high purity recyclable metals reduces environmental impact
- Durable design extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Crimp Link Bimetal Standard 16mm² Aluminium to 16mm² Copper is available for immediate purchase, ideal for electrical and industrial applications requiring reliable bimetallic connections.
