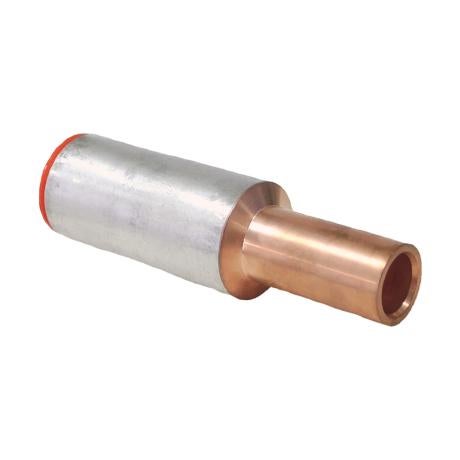

Crimp Link Bimetal Standard 300mm² Aluminium & Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
The Crimp Link Bimetal Standard 300mm² Aluminium and Copper is designed for reliable electrical connections, featuring a 99.6% pure aluminium sleeve and a 99.9% pure copper palm. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for power distribution and industrial applications, ensuring efficient conductivity and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Standard 300mm² Aluminium & Copper | 99.6% Aluminium & 99.9% Copper | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA300-300
Alternatively Known As: Bimetallic Crimp Link, Aluminium Copper Crimp Connector, Bi-metallic Electrical Link, Crimp Link 300mm² Al-Cu
Technical Specifications
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed including joint
- Joining Method: Friction Welding
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for strong, reliable connections
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper crimping and secure electrical connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Suitable for winding conductors in electrical equipment
- Used in power distribution and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Link Bimetal Standard 300mm² Aluminium - 300mm² Copper is available for immediate purchase, ideal for electrical and industrial applications requiring reliable conductor connections.
