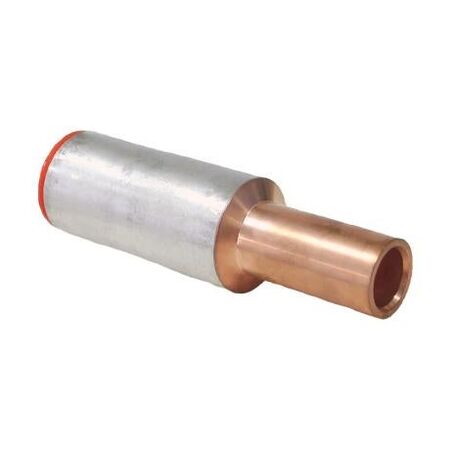

Crimp Link Bimetal Standard 95mm² Aluminium to Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
The Crimp Link Bimetal Standard connects 95mm² aluminium to 95mm² copper conductors, featuring 99.6% pure aluminium and 99.9% pure copper for optimal conductivity. With a high tensile strength of 110 MPa and a ductile rating of 28%, this connector is perfect for power distribution and industrial electrical installations, ensuring reliable and efficient connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Bimetal Standard 95mm² Aluminium to Copper | 99.6% Aluminium & 99.9% Copper | High Tensile Strength | by Wattmaster
Brand: Wattmaster
SKU: ALCLKCA95-95
Alternatively Known As: Bimetallic Crimp Link, Aluminium to Copper Crimp Connector, Bi-metallic Electrical Link
Technical Specifications
- Conductor Size: 95mm² Aluminium to 95mm² Copper
- Aluminium Sleeve Purity: 99.6%
- Copper Palm Purity: 99.9%
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed including joint
- Joining Method: Friction welding
- Dimensions (H x L x W): 10mm x 95mm x 40mm
- Weight: 0.15 kg
Key Features
- Aluminium sleeve made from 99.6% pure aluminium
- Copper palm made from 99.9% pure copper
- High tensile strength of 110 MPa
- Ductile rating of 28%
- Fully annealed final metal state including the joint
- Joining method uses friction welding for reliable connection
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for flexible and stranded copper conductors
- Suitable for winding conductors in electrical equipment
- Used in power distribution and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductors >10mm²
Environmental Benefits
- Use of high purity metals ensures efficient electrical conductivity reducing energy loss
- Durable construction reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Crimp Link Bimetal Standard 95mm² Aluminium to 95mm² Copper is available for immediate purchase, ideal for electrical and industrial applications requiring reliable conductor connections.
