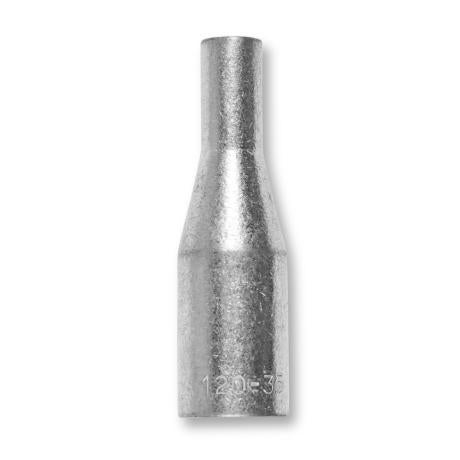

Crimp Link Reducing Non-Insulated Copper 120mm² - 35mm² | Electrolytic Grade Copper | Electro-Tin Plated | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 120mm² - 35mm² is designed for reliable electrical jointing of differing CSA conductors in industrial and commercial installations. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections with a wide operating temperature range of -55°C to +155°C. Ideal for use with standard crimp tools, this connector is perfect for electrical maintenance and repair work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 120mm² - 35mm² | Electrolytic Grade Copper | Electro-Tin Plated | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR120-35
Alternatively Known As: Copper Crimp Link, Reducing Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Range: 120mm² to 35mm²
- Operating Temperature: -55°C to +155°C
- Compatibility: Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Tool Compatibility: Standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in industrial and commercial electrical installations
- Suitable for use in power distribution and control panels
- Ideal for use in electrical maintenance and repair work
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 120mm² - 35mm² is available for immediate purchase, ideal for electrical jointing applications in industrial and commercial settings.
