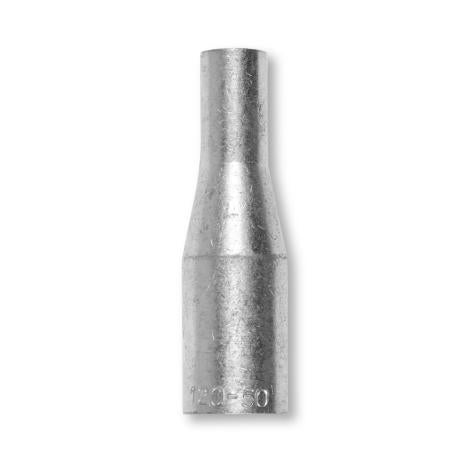

Crimp Link Reducing Non-Insulated Copper 120mm² to 50mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 120mm² to 50mm² is designed for efficient electrical jointing of differing conductor sizes. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it’s perfect for industrial and commercial applications. With a wide operating temperature range of -55°C to +155°C, this connector ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 120mm² to 50mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR120-50
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector, Electrical Crimp Link
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 120mm² to 50mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 120mm x 50mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in industrial and commercial electrical installations
- Suitable for use in power distribution and control panels
- Ideal for electrical maintenance and repair work requiring conductor size reduction
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 120mm² - 50mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
