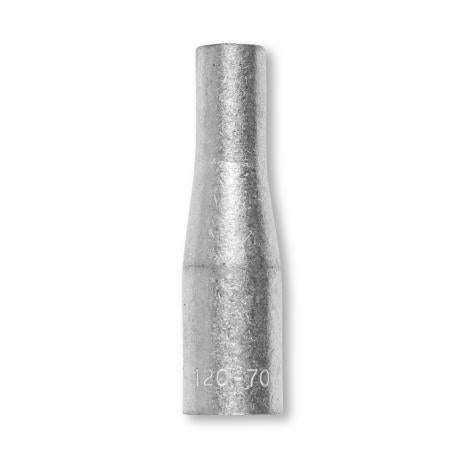

Crimp Link Reducing Non-Insulated Copper 120-70sqmm Electro-Tinned Wattmaster
The Crimp Link Reducing Non-Insulated Copper is designed for seamless electrical jointing of differing conductor sizes, reducing from 120mm² to 70mm².
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 120mm² to 70mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 20mm x 70mm x 120mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in industrial and commercial electrical installations
- Suitable for use in power distribution and control panels
- Ideal for use in electrical wiring systems requiring conductor size reduction
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
- Copper material is recyclable, supporting sustainable electrical practices
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 120mm² - 70mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
