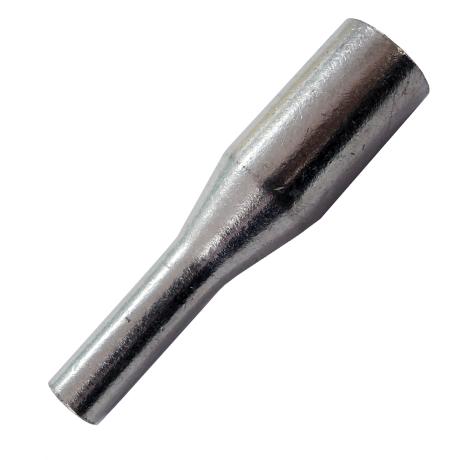

Crimp Link Reducing Non-Insulated Copper 150mm² to 120mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 150mm² to 120mm² is designed for reliable electrical jointing of stranded and fine stranded copper conductors. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it operates effectively in temperatures ranging from -55°C to +155°C. Ideal for industrial, commercial, and residential electrical installations, this connector ensures secure and compliant connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 150mm² to 120mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR150-120
Alternatively Known As: Copper Crimp Link, Reducing Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: 150mm² to 120mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for conductor sizes >10mm²
- Dimensions (H x L x W): 10mm x 150mm x 40mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for stranded and fine stranded copper conductors in electrical installations
- Used in industrial, commercial, and residential electrical wiring systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
- High-quality copper material is recyclable, supporting sustainable electrical practices
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 150mm² - 120mm² is available for immediate purchase, ideal for electrical jointing applications requiring reliable conductor size reduction.
