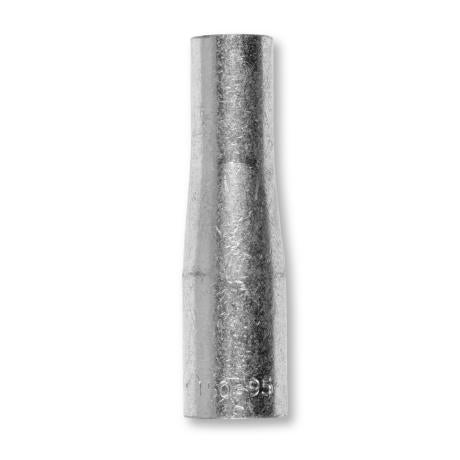

Crimp Link Reducing Non-Insulated Copper 150mm² to 50mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Crimp Link Reducing Non-Insulated Copper is designed for seamless electrical jointing of differing CSA conductors, featuring electrolytic grade copper and electro-tin plating for enhanced corrosion resistance. Ideal for residential, commercial, and industrial wiring, this connector ensures reliable connections for stranded and fine stranded copper conductors, making it a must-have for any electrician's toolkit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 150mm² to 50mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR150-50
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Size Reduction: From 150mm² to 50mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 150mm x 50mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring reliable copper conductor connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances longevity, reducing the need for frequent replacements and minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms.
Available Now
Available for immediate purchase, ideal for electrical jointing applications requiring reliable copper conductor connections.
