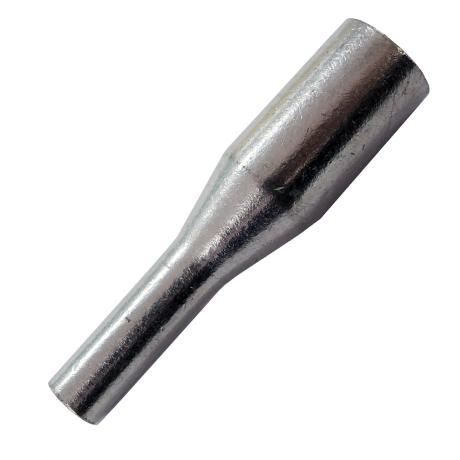

Crimp Link Reducing Non-Insulated Copper | 150mm² to 70mm² | Electro-Tin Plated | Chamfered Ends | @Each by Wattmaster
The Crimp Link Reducing Non-Insulated Copper is designed for electrical jointing of differing CSA conductors, accommodating sizes from 150mm² to 70mm². Made from electrolytic grade copper and electro-tin plated for corrosion resistance, this connector is perfect for industrial and commercial wiring applications, ensuring secure and compliant connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Range: 150mm² to 70mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 150mm x 50mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- All sizes sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical installations requiring conductor size reduction
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor links
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 150mm² - 70mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
