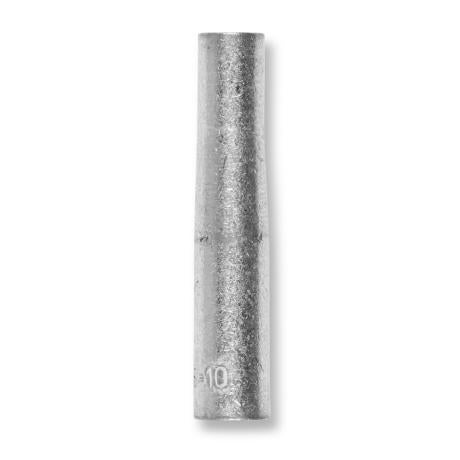

Crimp Link Reducing Non-Insulated Copper 16mm² to 10mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster

BRAND: Wattmaster
SKU: ALCLKR16-10
$18.90 List price: $22.90
+ −
30 Days Return Delivery Options
Crimp Link Reducing Non-Insulated Copper is designed for seamless electrical jointing of differing CSA conductors, reducing from 16mm² to 10mm². Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it's perfect for stranded and fine stranded copper conductors in industrial, commercial, and residential wiring systems.

Product Name/Title: Crimp Link Reducing Non-Insulated Copper 16mm² to 10mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster

Brand: Wattmaster

SKU: ALCLKR16-10

Alternatively Known As: Copper Crimp Link, Reducing Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector

Technical Specifications
  • Material: Electrolytic grade copper, electro-tin plated
  • Conductor Size Reduction: 16mm² to 10mm²
  • Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
  • Operating Temperature: -55°C to +155°C
  • Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
  • Dimensions (H x L x W): 10mm x 50mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Uninsulated electrolytic grade copper crimp links
  • Electro-tin plated for corrosion resistance
  • Chamfered ends for ease of entry of stranded conductors
  • Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
  • Operating temperature range from -55°C to +155°C
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
  • Electrical jointing of differing CSA conductors
  • Suitable for stranded and fine stranded copper conductors in electrical installations
  • Use in industrial, commercial, and residential electrical wiring systems
Standards & Compliance
  • Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
  • Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
Warranty Information

Warranty information not specified; typically covered by standard manufacturer warranty.

Available Now

Available for immediate purchase, ideal for electrical wiring and conductor jointing applications.
