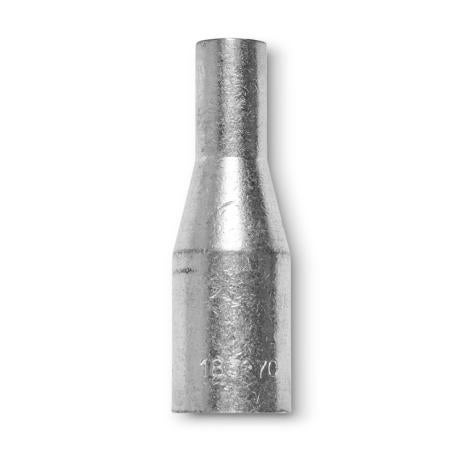

Crimp Link Reducing Non-Insulated Copper 185mm² - 70mm² | Electro-tin Plated | Chamfered Ends | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 185mm² - 70mm² is designed for efficient electrical jointing of differing conductor sizes. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections in industrial and commercial applications. Ideal for qualified electricians, this crimp link is compatible with standard crimp tools and operates within a temperature range of -55°C to +155°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 185mm² - 70mm² | Electro-tin Plated | Chamfered Ends | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR185-70
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector, Electrical Crimp Link
Technical Specifications
- Material: Electrolytic grade copper
- Surface Finish: Electro-tin plated
- Conductor Size Reduction: From 185mm² to 70mm²
- Operating Temperature: -55°C to +155°C
- Compatibility: Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Tool Compatibility: Standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.15 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical installations requiring conductor size reduction
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor links
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty terms as provided by Wattmaster, typically covering manufacturing defects.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 185mm² - 70mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
