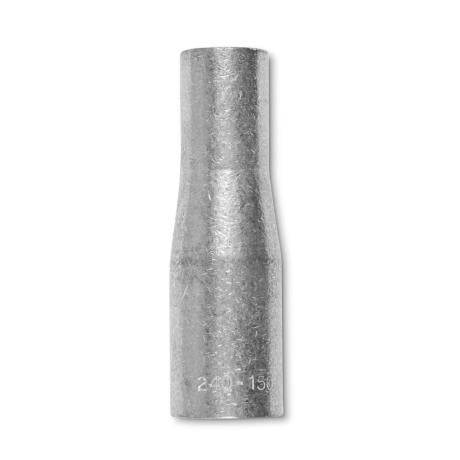

Crimp Link Reducing Non-Insulated Copper 240mm² to 150mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 240mm² to 150mm² is designed for efficient electrical jointing of differing conductor sizes. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections in industrial and commercial applications. Ideal for qualified electricians, this connector operates within a temperature range of -55°C to +155°C, making it a reliable choice for various electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 240mm² to 150mm² | Electro-Tin Plated | Chamfered Ends | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR240-150
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: 240mm² to 150mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 150mm x 60mm
- Weight: 0.3 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Suitable for use with standard 6 tonne, 12 tonne and indent and hex crimp tools
- Operating temperature range: -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical installations requiring conductor size reduction
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 240mm² - 150mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
