Trade Discount 17%

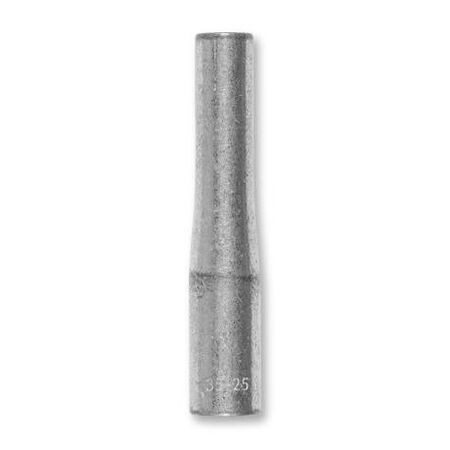

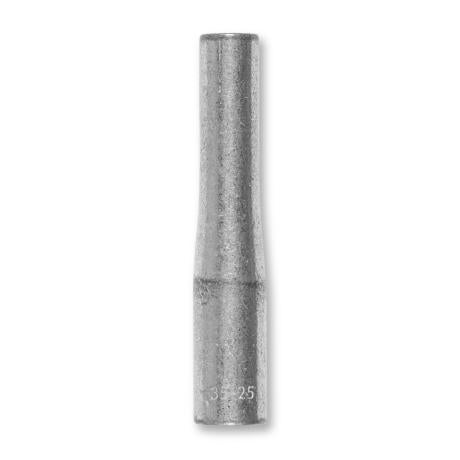

Crimp Link Reducing Non-Insulated Copper | 35mm² to 25mm² | Electro-Tin Plated | Corrosion Resistant | @Each by Wattmaster
The Crimp Link Reducing Non-Insulated Copper is designed for seamless electrical jointing, reducing conductor sizes from 35mm² to 25mm². Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it's perfect for stranded and fine stranded conductors in various electrical installations. Ideal for industrial, commercial, and residential applications, this connector ensures secure and compliant connections when installed by a qualified electrician.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper | 35mm² to 25mm² | Electro-Tin Plated | Corrosion Resistant | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLKR35-25
Alternatively Known As: Copper Crimp Link, Reducing Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper
- Surface: Electro-tin plated for corrosion resistance
- Conductor Size Reduction: From 35mm² to 25mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compatible with 6 tonne, 12 tonne, indent and hex crimp tools
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 70mm x 40mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for stranded and fine stranded copper conductors in electrical installations
- Used in industrial, commercial, and residential electrical wiring
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
Warranty information not specified; typically covered under manufacturer’s standard warranty.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 35mm² to 25mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
