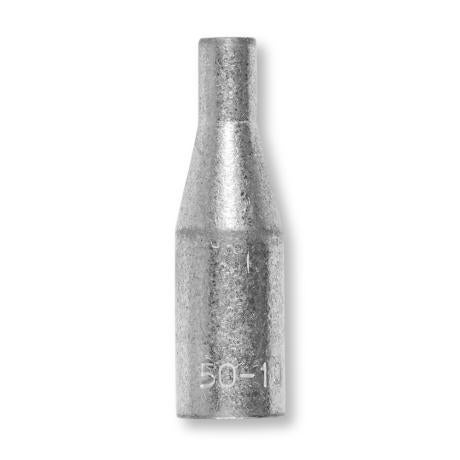

Crimp Link Reducing Non-Insulated Copper 50mm² to 10mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 50mm² to 10mm² is designed for efficient electrical jointing of differing conductor sizes. Made from electrolytic grade copper and electro-tin plated for enhanced corrosion resistance, this connector is perfect for industrial and commercial wiring applications. With a wide operating temperature range of -55°C to +155°C, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 50mm² to 10mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR50-10
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: 50mm² to 10mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- All sizes sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical installations requiring conductor size reduction
- Industrial and commercial electrical wiring applications
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for conductor joints
Environmental Benefits
- Durable copper construction reduces need for frequent replacements
- Electro-tin plating enhances corrosion resistance, extending product life and reducing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 50mm² - 10mm² is available for immediate purchase, ideal for electrical jointing applications requiring conductor size reduction.
