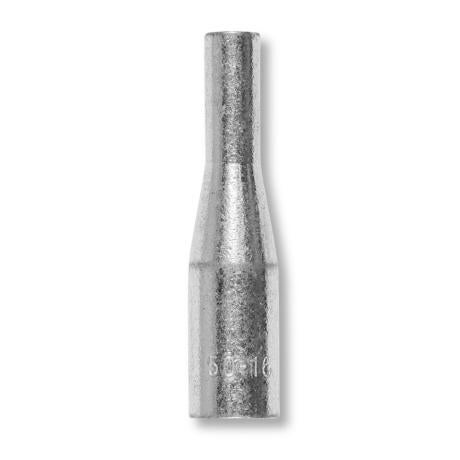

Crimp Link Reducing Non-Insulated Copper 50mm² - 16mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
The Crimp Link Reducing Non-Insulated Copper 50mm² - 16mm² is designed for reliable electrical jointing of differing CSA conductors. Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it ensures secure connections in residential, commercial, and industrial wiring. Ideal for use with stranded and fine stranded copper conductors, this crimp link is compliant with AS/NZS 4325.1:1995 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 50mm² - 16mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR50-16
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector, Electrical Crimp Link
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Range: Reduces from 50mm² to 16mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent, and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring reliable conductor connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 50mm² - 16mm² is available for immediate purchase, ideal for electrical jointing applications requiring reliable conductor connections.
