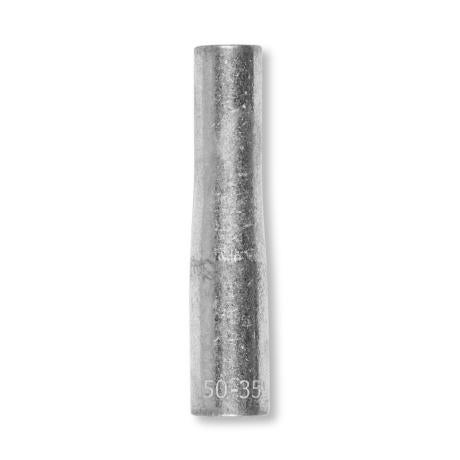

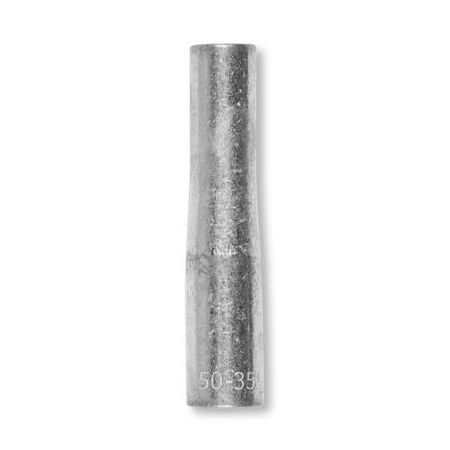

Crimp Link Reducing Non-Insulated Copper 50mm² to 35mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Crimp Link Reducing Non-Insulated Copper is designed for reliable electrical jointing, reducing conductor sizes from 50mm² to 35mm². Made from electrolytic grade copper and electro-tin plated for corrosion resistance, it's perfect for stranded and fine stranded conductors in residential, commercial, and industrial applications. Ensure secure connections with this durable and compliant solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Reducing Non-Insulated Copper 50mm² to 35mm² | Electrolytic Grade Copper | Corrosion Resistant | by Wattmaster
Brand: Wattmaster
SKU: ALCLKR50-35
Alternatively Known As: Copper Crimp Link, Reducing Copper Link, Non-Insulated Copper Crimp Connector, Electrical Crimp Link
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 50mm² to 35mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring reliable copper conductor connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability and reduces the need for frequent replacements, minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
Wattmaster Crimp Link Reducing Non-Insulated Copper 50mm² - 35mm² is available for immediate purchase, ideal for electrical jointing applications requiring reliable conductor connections.
