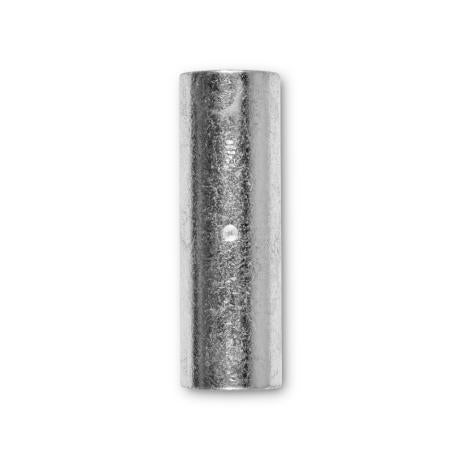

Crimp Link Standard Non-Insulated Copper 240mm² | Long Barrel Design | Electro Tinned Finish | @Each by Wattmaster
The Crimp Link Standard Non-Insulated Copper 240mm² is designed for secure electrical connections, featuring a long barrel design and an electro tinned finish for enhanced conductivity. Ideal for industrial and commercial wiring, this crimp link ensures reliable performance in power distribution and grounding systems, making it a must-have for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Standard Non-Insulated Copper 240mm² | Long Barrel Design | Electro Tinned Finish | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLK240/6
Alternatively Known As: Copper Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector 240mm²
Technical Specifications
- Material: Electro grade copper with electro tinned finish
- Size: 240mm² to 240mm²
- Operating Temperature: -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for cable links over 10mm²
- Features entrance chamfer and centre dimpling for secure crimping
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.15 kg
Key Features
- Non-insulated electro grade copper crimp links
- Long barrel design for secure connections
- Electro tinned finish for enhanced conductivity
- Includes entrance chamfer and centre dimpling for ease of installation
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) (>10mm²)
Environmental Benefits
- Electro tinned finish improves longevity reducing replacement frequency
- Copper is recyclable, supporting sustainable material use
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Standard Non-Insulated Copper 240mm² is available for immediate purchase, ideal for electrical wiring and power distribution applications.
