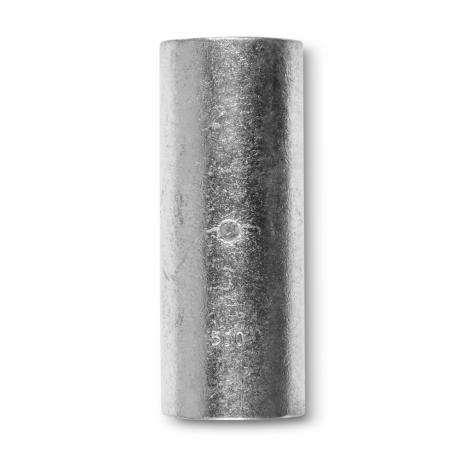

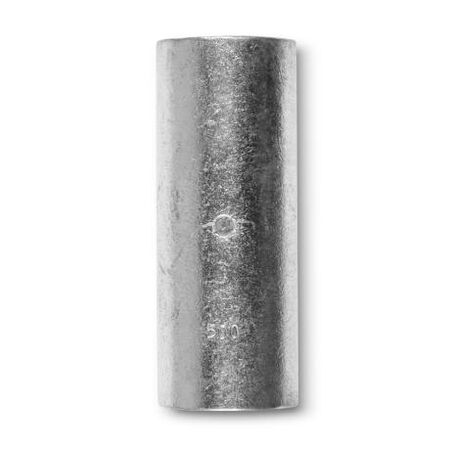

Crimp Link Standard Non-Insulated Copper | Long Barrel Design | Electro Tinned Finish | @Each by Wattmaster
Crimp Link Standard Non-Insulated Copper is designed for secure electrical connections, featuring a long barrel design and an electro tinned finish for high conductivity. Ideal for industrial and commercial wiring, this connector ensures reliable performance in power distribution and grounding systems, operating within a temperature range of -55°C to +155°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Link Standard Non-Insulated Copper | Long Barrel Design | Electro Tinned Finish | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCLK500/3
Alternatively Known As: Copper Crimp Link, Non-Insulated Copper Link, Electrical Crimp Connector 500mm²
Technical Specifications
- Material: Electro grade copper
- Finish: Electro tinned
- Cable Size Compatibility: 500mm²
- Operating Temperature: -55°C to +155°C
- Standard Compliance: AS/NZS 4325.1:1995 (cl7) for cable sizes >10mm²
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Non-insulated electro grade copper crimp links
- Long barrel design for secure connections
- Electro tinned finish for high conductivity
- Includes entrance chamfer and centre dimpling for ease of installation
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical connections for stranded to fine-stranded copper cables
- Industrial and commercial electrical wiring
- Power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for cable sizes greater than 10mm²
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- High conductivity reduces energy loss in electrical systems
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
Wattmaster Crimp Link Standard Non-Insulated Copper 500mm² is available for immediate purchase, ideal for electrical wiring and power distribution applications.
