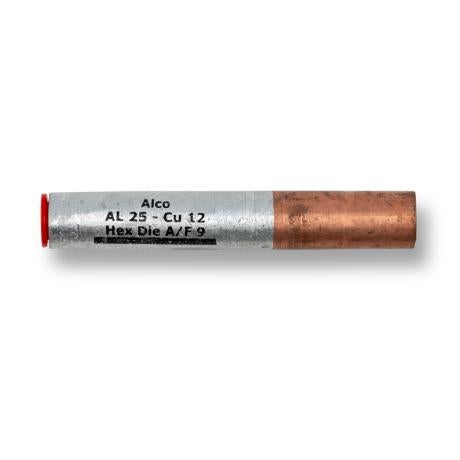

Crimp Lug Bi-Metal | 25mm² Aluminum | 12mm Copper Stalk Diameter | Friction Welded | by Wattmaster
Crimp Lug Bi-Metal is designed for reliable electrical connections, featuring a 25mm² aluminum conductor and a 12mm copper stalk diameter. Ideal for electrical termination of aluminum conductors to copper busbars, this lug is built with high purity materials for efficient conductivity and reduced corrosion, making it perfect for industrial, commercial, and residential wiring projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal | 25mm² Aluminum | 12mm Copper Stalk Diameter | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS25-12
Alternatively Known As: Bi-metal crimp lug, Aluminum copper crimp lug, Bi-metallic cable lug, Electrical crimp connector
Technical Specifications
- Conductor Size: 25mm² aluminum
- Copper Stalk Diameter: 12mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 12mm x 60mm x 25mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- Hi purity aluminum 99.6% and ETP copper 99.9%
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic lugs
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased aluminum barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
Available for immediate purchase, ideal for electrical wiring projects requiring reliable aluminum to copper conductor terminations.
