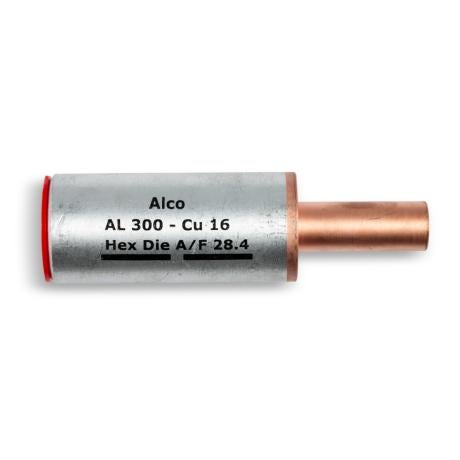

Crimp Lug Bi-Metal | 300mm² Aluminum | 16mm Copper Stalk Diameter | Friction Welded | by Wattmaster
Crimp Lug Bi-Metal is designed for reliable electrical connections, featuring a 300mm² aluminum conductor and a 16mm copper stalk diameter. Ideal for electrical termination in industrial and commercial applications, this lug ensures secure connections with its friction welded construction and pre-greased barrels to reduce corrosion. Perfect for use with standard Australian hex crimp dies, it meets AS/NZS 4325.1:1995 compliance for bi-metallic lugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal | 300mm² Aluminum | 16mm Copper Stalk Diameter | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS300-16
Alternatively Known As: Bi-metal crimp lug, Aluminum copper crimp connector, Bi-metallic cable lug, Aluminum to copper crimp terminal
Technical Specifications
- Conductor Size: 300mm² aluminum
- Copper Stalk Diameter: 16mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for use with 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 120mm x 40mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper installation
- Hi purity aluminum 99.6% and ETP copper 99.9%
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- All sizes available for individual sale
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Industrial and commercial electrical installations requiring bi-metallic lugs
- Suitable for use in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty coverage subject to manufacturer terms and conditions; typically includes defects in materials and workmanship.
Available Now
Available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable aluminum to copper conductor terminations.
