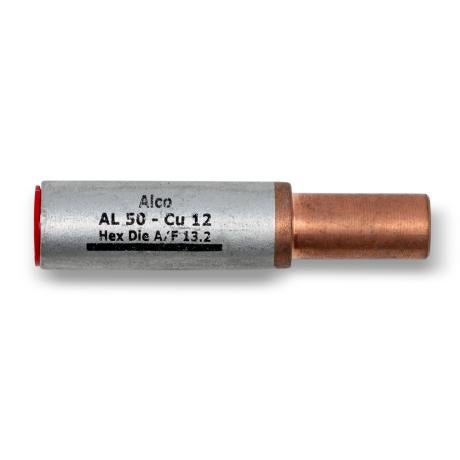

Crimp Lug Bi-Metal | 50mm² Aluminum | 12mm Copper Stalk Diameter | Friction Welded | by Wattmaster
Crimp Lug Bi-Metal designed for 50mm² aluminum conductors and featuring a 12mm copper stalk diameter ensures reliable electrical connections. Ideal for industrial, commercial, and residential wiring, this lug is made from high purity aluminum and ETP copper, with pre-greased barrels to reduce corrosion. Perfect for use with standard Australian hex crimp dies, it guarantees secure and compliant terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor Size: 50mm² aluminum
- Copper Stalk Diameter: 12mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 5mm x 70mm x 20mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper installation
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- High purity aluminum (99.6%) and ETP copper (99.9%) materials
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient electrical conductivity, reducing energy loss
Warranty Information
Warranty subject to manufacturer terms and conditions; typically covers manufacturing defects.
Available Now
Available for immediate purchase, ideal for electrical contractors and industrial applications requiring reliable aluminum to copper conductor terminations.
