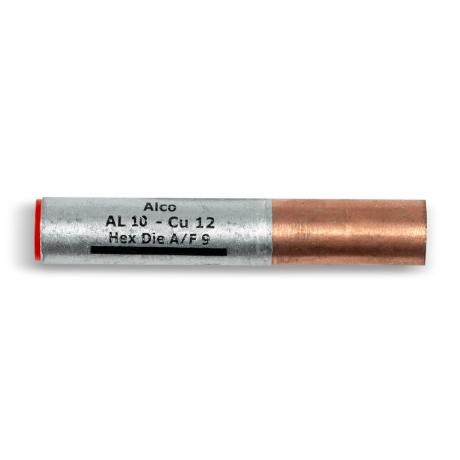

Crimp Lug Bi-Metal Aluminium 10mm² | Copper Stalk 12mm | Friction Welded | Pre-Greased | by Wattmaster
The Crimp Lug Bi-Metal Aluminium 10mm² is designed for reliable electrical connections, featuring a 12mm copper stalk and friction welded construction. Ideal for industrial, commercial, and residential wiring, this lug ensures compliance with AS/NZS standards and is compatible with standard Australian hex crimp dies. With pre-greased barrels to reduce corrosion, it offers long-lasting performance and efficient conductivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium 10mm² | Copper Stalk 12mm | Friction Welded | Pre-Greased | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS10-12
Alternatively Known As: Bi-metal crimp lug, aluminum copper crimp connector, bi-metallic cable lug, aluminum cable lug, copper stalk lug
Technical Specifications
- Conductor Size: 10mm² aluminum
- Copper Stalk Diameter: 12mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Connection Type: Friction welded bi-metallic crimp lug
- Compatibility: Standard 6 ton and 12 ton Australian hex crimp dies
- Compliance: AS/NZS 4325.1:1995 (cl7) for >10mm²
- Dimensions (H x L x W): 5mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for proper installation
- Suitable for use with standard 6 ton and 12 ton Australian hex crimp dies
- Hi purity aluminum 99.6% and ETP copper 99.9%
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
- All sizes can be sold individually
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools (6 ton or 12 ton Australian hex crimp dies) is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Suitable for industrial, commercial, and residential electrical wiring requiring bi-metallic connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 for bi-metallic cable lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty details available upon request from Wattmaster; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Crimp Lug Bi-Metal Aluminium 10mm² Copper Stalk Diameter 12mm is available for immediate purchase, ideal for electrical wiring and termination applications requiring reliable bi-metallic connections.
