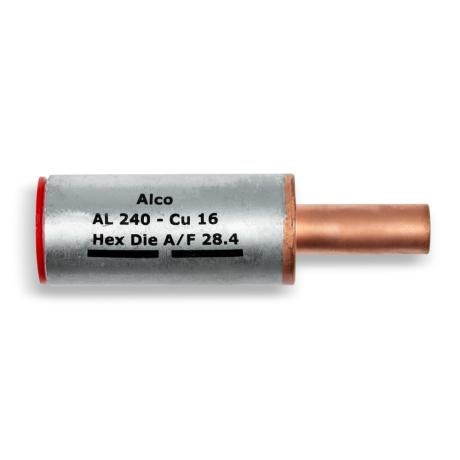

Crimp Lug Bi-Metal Aluminium 240mm² | Copper Stalk 16mm | Friction Welded | by Wattmaster
Crimp Lug Bi-Metal Aluminium 240mm² is designed for reliable electrical connections, featuring a 16mm copper stalk diameter and friction welded construction. Ideal for electrical termination in industrial and commercial applications, this lug ensures high conductivity and compliance with AS/NZS standards, making it perfect for power distribution and grounding systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Crimp Lug Bi-Metal Aluminium 240mm² | Copper Stalk 16mm | Friction Welded | by Wattmaster
Brand: Wattmaster
SKU: ALCLCAS240-16
Alternatively Known As: Bi-metal crimp lug, Aluminum copper crimp lug, Bi-metallic cable lug, Electrical crimp connector
Technical Specifications
- Conductor Size: 240mm² aluminum
- Copper Stalk Diameter: 16mm
- Material: High purity aluminum (99.6%) and ETP copper (99.9%)
- Manufacturing: Friction welded bi-metallic construction
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Compatibility: Suitable for 6 ton and 12 ton Australian hex crimp dies
- Dimensions (H x L x W): 10mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Friction welded aluminum/copper crimp lugs for reliable electrical connection
- Pre-greased aluminum barrels to reduce corrosion
- Printed with crimp indicator marks for accurate installation
- Hi purity aluminum 99.6% and ETP copper 99.9%
- Compatible with standard 6 ton and 12 ton Australian hex crimp dies
- All sizes available for individual sale
Professional Installation Requirements
- Installation by a qualified electrician using appropriate crimping tools is recommended to ensure secure and compliant connections.
Applications
- Electrical termination of aluminum and aluminum alloy conductors to copper busbars and terminals
- Industrial and commercial electrical installations requiring bi-metallic lugs
- Suitable for use in power distribution and grounding systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for bi-metallic lugs
Environmental Benefits
- Pre-greased barrels reduce corrosion, extending product life and reducing waste
- High purity materials ensure efficient conductivity, reducing energy loss
Warranty Information
Warranty terms as per Wattmaster standard product warranty policy.
Available Now
Available for immediate purchase, ideal for electrical termination in industrial, commercial, and residential power distribution systems.
